Client
Ghana Water Company Limited (GWCL)
Project
Water Treatment Plant
Project Duration
36 months
Project Description
This project presents a comprehensive visual overview of a water treatment facility, highlighting its key operational structures and infrastructure through a series of images.

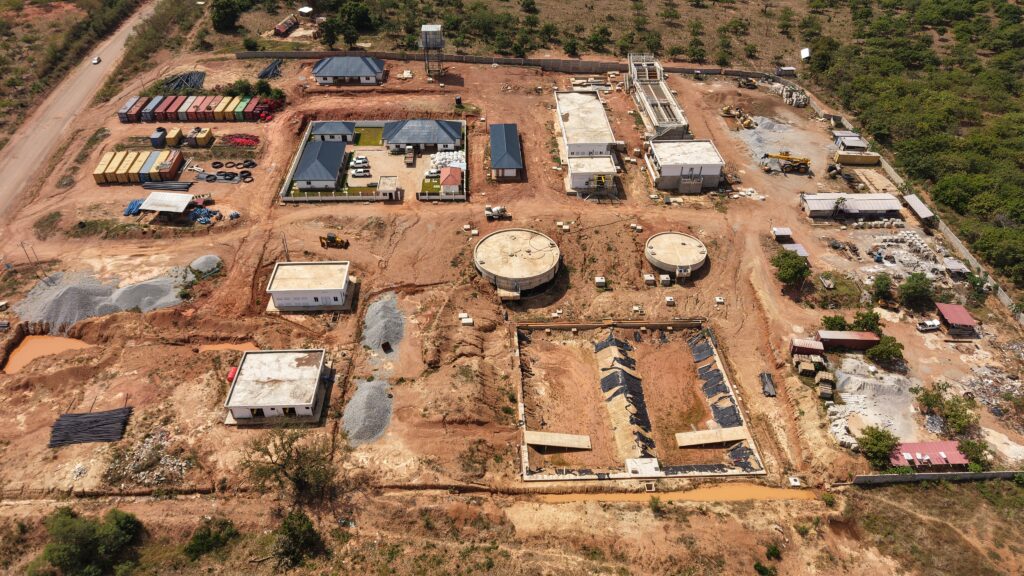

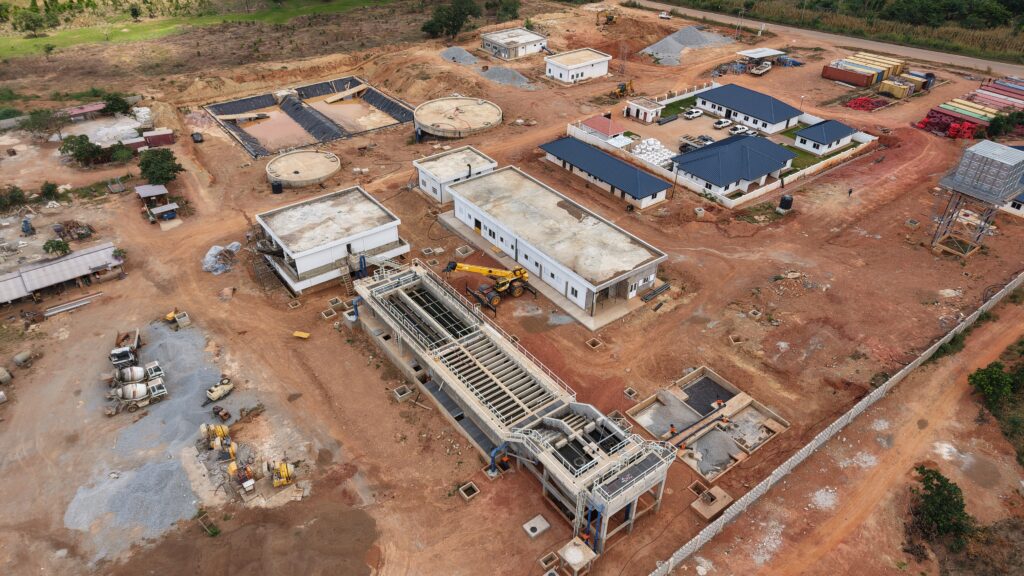

The aerial perspectives provide a detailed layout of the treatment plant, clearly illustrating the spatial relationship between critical components. Prominent among these are the Administration Building, which serves as the operational hub, and the Pre-Sedimentation Tank, where initial removal of suspended solids takes place. The images also capture the Clarifier, an essential unit responsible for separating fine particles from the water.
Additional structures visible include the Distribution Chamber, which regulates water flow across the treatment system, as well as the Electrical Building that supports power supply and control operations. The Filter unit and Clear Water Tank are also identified, representing the final stages of purification and storage before distribution.

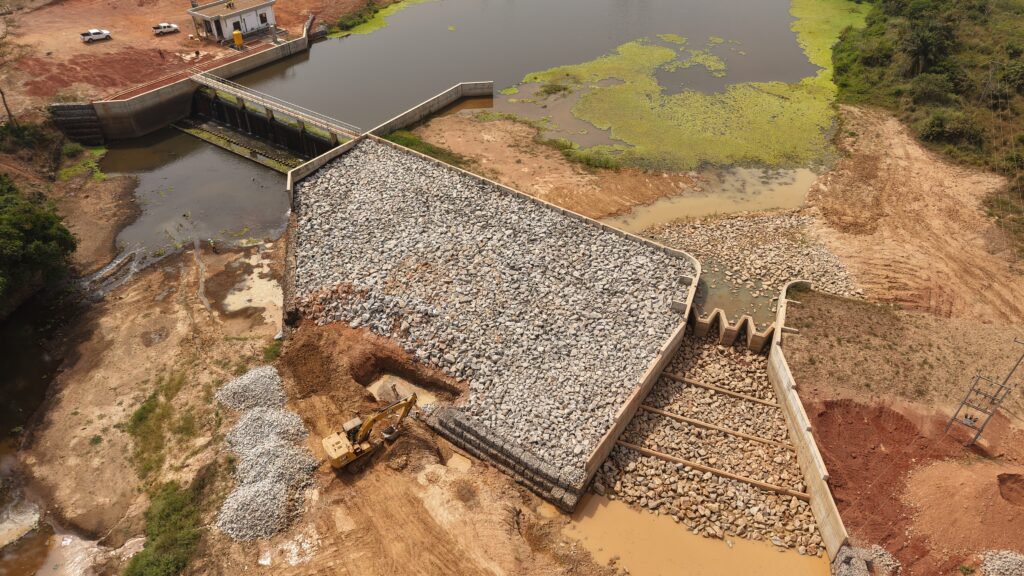

Ground-level imagery further complements the aerial views by providing focused detail on individual components. The Clarifier is shown in greater clarity, emphasizing its structural design and role in sedimentation. The Raw Water Intake is also highlighted, including sections of the river ramp on both sides of the riverbank, which facilitate water abstraction from the source.
Finally, the Low Lift Pumping Station is presented alongside its associated Electrical Building, demonstrating the mechanism by which raw water is conveyed into the treatment process.
Overall, this project offers a structured visual documentation of the water treatment plant, showcasing its key systems and their functional relationships within the broader water purification process.
